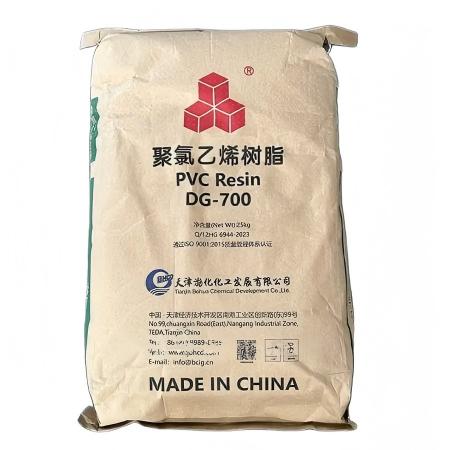

DG-700 PVC Resin

Product Overview

DG-700 PVC Resin is a low-polymerization-degree suspension-process ethylene based polyvinyl chloride resin, specially optimized for high-flow, low-processing-temperature rigid PVC injection molding and transparent product scenarios. This white free-flowing powder features a K value of 57-59 and an average polymerization degree of 700±50.

Key Specifications

Item	Index
CAS Number	9002-86-2
Appearance	Uniform white powder
K Value	57-59
Average Polymerization Degree	700±50
Volatile Matter	≤ 0.30%
Apparent Density	0.55-0.65 g/cm³
Sieve Residue (0.25mm)	≤ 0.8%
White Degree (160℃, 10min)	≥ 92%
VCM Residual	≤ 5 μg/g

Core Performance Advantages

‌Ultra-low Processing Temperature & High Flowability‌
WSD CHEMICAL DG-700 PVC Resin can achieve full plasticization at a lower processing temperature, and its melt has excellent mold filling capacity. It can easily fill thin-wall, complex-groove and large-cavity injection molds, effectively reducing the injection pressure and equipment energy consumption.

High Transparency & Low Impurity Content‌
When used in combination with WSD CHEMICAL methyl tin heat stabilizer, it can obtain higher transparency and excellent initial color retention, avoiding yellowing and haze defects of transparent products.

Good Thermal Stability & Release Performance‌
Its narrow molecular weight distribution effectively reduces the residual internal stress of finished products, and it has a moderate demolding performance after curing. It can well match the high-speed cycle operation requirements of fully automatic injection molding machines, and greatly reduce the defective rate caused by sticking molds and uneven demolding.

Main Application Areas

PVC Injection Molding Parts‌: The preferred base material for producing high-precision thin-wall pipe fittings, transparent valve bodies, and electrical insulation injection parts, significantly improving the dimensional accuracy of finished products

High Transparency Products‌: Widely used in PVC transparent sheets, transparent containers, blister packaging and high-transparency hard decorative materials, with excellent surface gloss

Low-temperature Processing Compounding‌: Suitable for manufacturing low-melting-point PVC granules, printing calendered films and special low-viscosity modified materials

PVC or WPC foam board, foaming Wall panel

Quality & Supply Guarantee

· WSD CHEMICAL DG-700 strictly controls the polymerization reaction process, and the batch stability of polymerization degree and fluidity is far higher than the general industrial standard, ensuring no performance fluctuation in large-volume continuous production

· Relying on the stable supply chain of domestic high-quality PVC production bases, it can provide timely and reliable bulk delivery services for global buyers
